Tutorial for MIRI post-pipeline contrast analyses
In this notebook we will analyze the MIRI coronagraphy data on HIP 65426 b from the JWST ERS program on Direct Observations of Exoplanetary Systems, program 1386.
Prerequisite: This notebook assumes you have already ran the “Tutorial for MIRI data reductions” notebook. The output files must be present from that reduction to be analyzed in this notebook.
Setup and imports
[1]:
import os
import pdb
import sys
import glob
import numpy as np
import astropy.io.fits as fits
import matplotlib.pyplot as plt
import matplotlib
matplotlib.rcParams.update({'font.size': 14})
import spaceKLIP
**WARNING**: LOCAL JWST PRD VERSION PRDOPSSOC-059 CANNOT BE CHECKED AGAINST ONLINE VERSION
[ webbpsf:INFO] NIRCam aperture name updated to NRCA1_FULL
2023-08-03 15:52:20,860 - stpipe - INFO - NIRCam aperture name updated to NRCA1_FULL
[ stpipe:INFO] NIRCam aperture name updated to NRCA1_FULL
[ webbpsf:INFO] NIRISS SIAF aperture name updated to NIS_CEN
2023-08-03 15:52:20,878 - stpipe - INFO - NIRISS SIAF aperture name updated to NIS_CEN
[ stpipe:INFO] NIRISS SIAF aperture name updated to NIS_CEN
[ webbpsf:INFO] MIRI SIAF aperture name updated to MIRIM_FULL
2023-08-03 15:52:20,968 - stpipe - INFO - MIRI SIAF aperture name updated to MIRIM_FULL
[ stpipe:INFO] MIRI SIAF aperture name updated to MIRIM_FULL
Note that currently the import of webbpsf_ext
has a side effect of configuring extra verbose logging. We’re not interested in that logging text, so let’s quiet it.
[2]:
import webbpsf_ext
webbpsf_ext.setup_logging('WARN', verbose=False)
[3]:
data_root = 'data_miri_hd65426'
Re-read level 3 outputs into database
Read in output files produced in the NIRCam coronagraph data reduction notebook.
[4]:
input_dir = os.path.join(data_root, 'klipsub')
fitsfiles = sorted(glob.glob(os.path.join(input_dir, "*KLmodes-all.fits")))
database = spaceKLIP.database.Database(output_dir=data_root)
database.read_jwst_s3_data(fitsfiles)
[spaceKLIP.database:INFO] --> Identified 2 concatenation(s)
[spaceKLIP.database:INFO] --> Concatenation 1: JWST_MIRI_MIRIMAGE_F1140C_NONE_4QPM_1140_MASK1140
TYPE EXP_TYPE DATAMODL TELESCOP TARGPROP INSTRUME DETECTOR FILTER CWAVEL DWAVEL PUPIL CORONMSK NINTS EFFINTTM SUBARRAY PIXSCALE MODE ANNULI SUBSECTS KLMODES BUNIT BLURFWHM
------ -------- -------- -------- --------- -------- -------- ------ --------------- ---------------- ----- --------- ----- -------- -------- ---------- ------- ------ -------- ------------------------------ ------ --------
PYKLIP MIR_4QPM STAGE3 JWST HIP-65426 MIRI MIRIMAGE F1140C 11.315651557554 0.60365321991656 NONE 4QPM_1140 80 24.20768 MASK1140 110.917025 ADI+RDI 1 1 1,2,3,4,5,6,7,8,9,10,20,50,100 MJy/sr nan
PYKLIP MIR_4QPM STAGE3 JWST HIP-65426 MIRI MIRIMAGE F1140C 11.315651557554 0.60365321991656 NONE 4QPM_1140 80 24.20768 MASK1140 110.917025 ADI 1 1 1,2,3,4,5,6,7,8,9,10,20,50,100 MJy/sr nan
PYKLIP MIR_4QPM STAGE3 JWST HIP-65426 MIRI MIRIMAGE F1140C 11.315651557554 0.60365321991656 NONE 4QPM_1140 80 24.20768 MASK1140 110.917025 RDI 1 1 1,2,3,4,5,6,7,8,9,10,20,50,100 MJy/sr nan
[spaceKLIP.database:INFO] --> Concatenation 2: JWST_MIRI_MIRIMAGE_F1550C_NONE_4QPM_1550_MASK1550
TYPE EXP_TYPE DATAMODL TELESCOP TARGPROP INSTRUME DETECTOR FILTER CWAVEL DWAVEL PUPIL CORONMSK NINTS EFFINTTM SUBARRAY PIXSCALE MODE ANNULI SUBSECTS KLMODES BUNIT BLURFWHM
------ -------- -------- -------- --------- -------- -------- ------ --------------- ---------------- ----- --------- ----- -------- -------- ---------- ------- ------ -------- ------------------------------ ------ --------
PYKLIP MIR_4QPM STAGE3 JWST HIP-65426 MIRI MIRIMAGE F1550C 15.521965212798 0.70380136629677 NONE 4QPM_1550 118 59.92 MASK1550 110.917025 ADI+RDI 1 1 1,2,3,4,5,6,7,8,9,10,20,50,100 MJy/sr nan
PYKLIP MIR_4QPM STAGE3 JWST HIP-65426 MIRI MIRIMAGE F1550C 15.521965212798 0.70380136629677 NONE 4QPM_1550 118 59.92 MASK1550 110.917025 ADI 1 1 1,2,3,4,5,6,7,8,9,10,20,50,100 MJy/sr nan
PYKLIP MIR_4QPM STAGE3 JWST HIP-65426 MIRI MIRIMAGE F1550C 15.521965212798 0.70380136629677 NONE 4QPM_1550 118 59.92 MASK1550 110.917025 RDI 1 1 1,2,3,4,5,6,7,8,9,10,20,50,100 MJy/sr nan
Contrast Calculations
Here we use the analysistools module to measure contrast
Preparation: Stellar Photometry Model
This requires an input giving the host star photometry, formatted as a Vizier VOTable, or a simple text file with columns giving wavelenth in microns and flux in Jy. The latter could be produced, for instance, from fitting a scaled version of a stellar atmosphere model to available photometry.
We provide here examples of both kinds of file, provided by Aarynn Carter. Only one is needed; we provide both purely as examples.
[42]:
star_photometry_vot = 'HIP65426.vot'
star_photometry_txt = 'HIP65426A_sdf_phoenix_m+modbb_disk_r.txt'
[44]:
import astropy
# Read in VOT version
vot_version = astropy.table.Table.read(star_photometry_vot)
# convert from freq to wl, just for plotting below.
vot_version['wavelength'] = (astropy.constants.c / vot_version['sed_freq']).to(astropy.units.micron)
# Read in TXT version
txt_version = astropy.table.Table.read(star_photometry_txt,
format='ascii',
names=['wavelength', 'flux'])
txt_version.columns['wavelength'].unit = astropy.units.micron
txt_version.columns['flux'].unit = astropy.units.Jansky
[45]:
# plot, to show the two models are consistent
plt.semilogx(txt_version['wavelength'], txt_version['flux'], label='HIP65426A_sdf_phoenix_m+modbb_disk_r.txt',)
plt.scatter(vot_version['wavelength'], vot_version['sed_flux'], label='HIP65426.vot', color='C1')
plt.xlabel("Wavelength [micron]")
plt.ylabel("Flux [Jansky]")
plt.legend(fontsize=9)
[45]:
<matplotlib.legend.Legend at 0x130906650>
[46]:
# Initialize the spaceKLIP contrast estimation class.
analysistools = spaceKLIP.analysistools.AnalysisTools(database)
[47]:

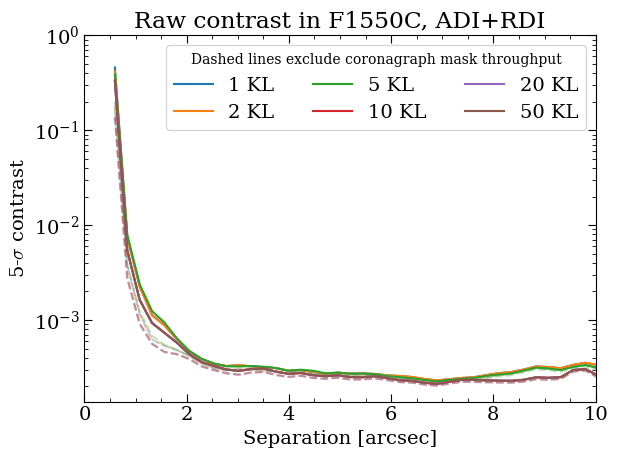

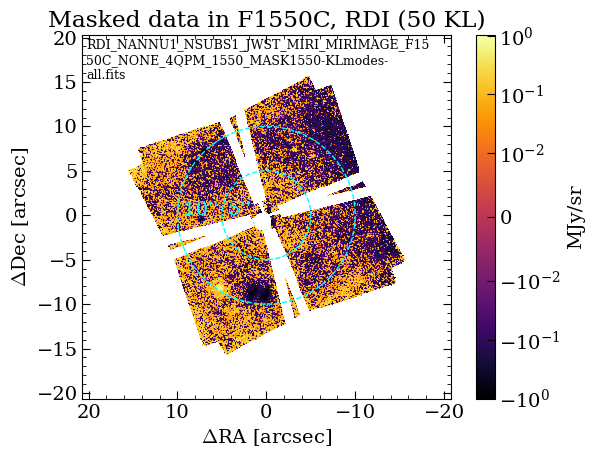

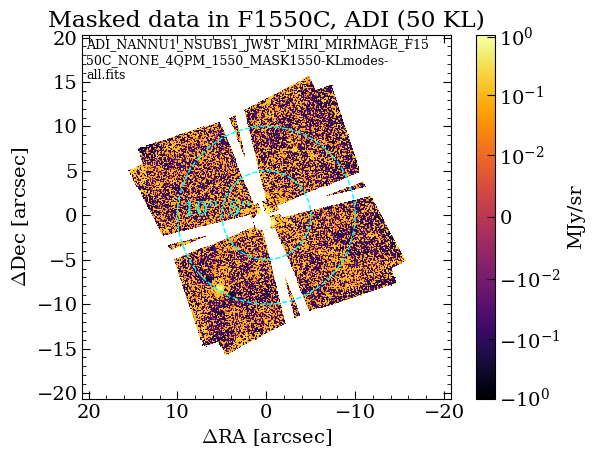

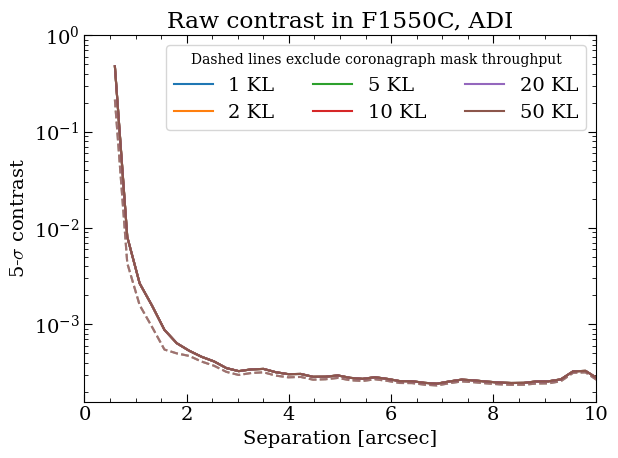

# Compute raw contrast.
analysistools.raw_contrast(star_photometry_txt)
[spaceKLIP.analysistools:INFO] --> Concatenation JWST_MIRI_MIRIMAGE_F1140C_NONE_4QPM_1140_MASK1140
[spaceKLIP.psf:INFO] --> Generating WebbPSF model
---------------------------------------------------------------------------
NotImplementedError Traceback (most recent call last)
Cell In[47], line 2
1 # Compute raw contrast.
----> 2 analysistools.raw_contrast(star_photometry_txt)
File ~/Dropbox (Personal)/Documents/software/git/spaceKLIP/spaceKLIP/analysistools.py:203, in AnalysisTools.raw_contrast(self, starfile, spectral_type, companions, overwrite_crpix, subdir)
201 data[:, temp] = np.nan
202 elif self.database.red[key]['EXP_TYPE'][j] in ['MIR_4QPM', 'MIR_LYOT']:
--> 203 raise NotImplementedError()
205 # Mask companions.
206 if companions is not None:
NotImplementedError:

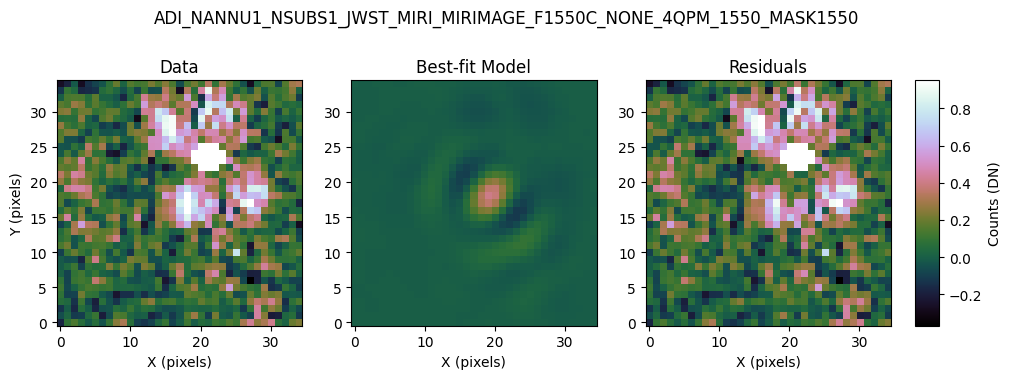

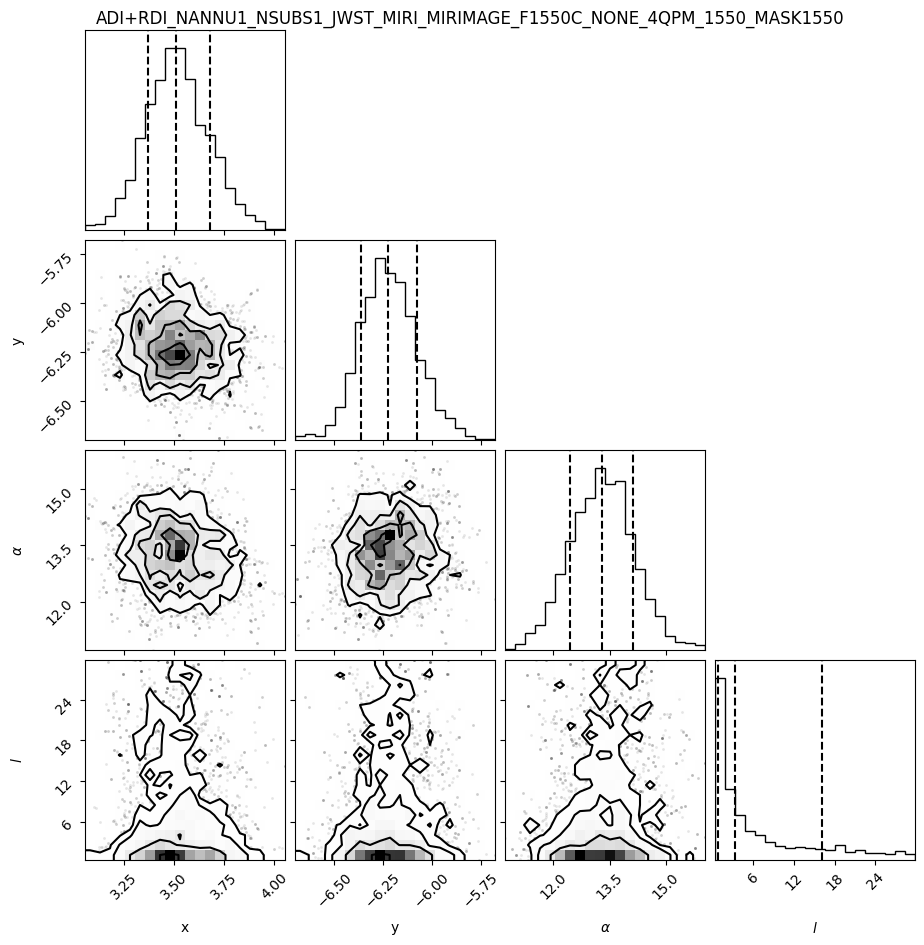

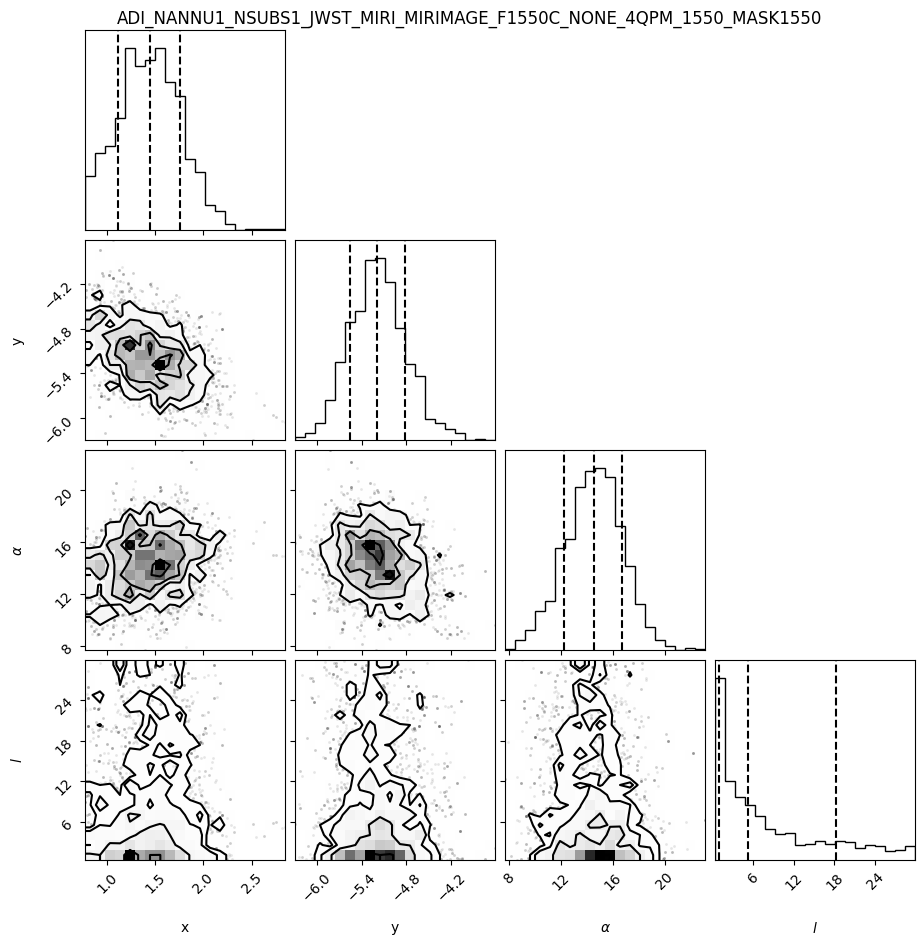

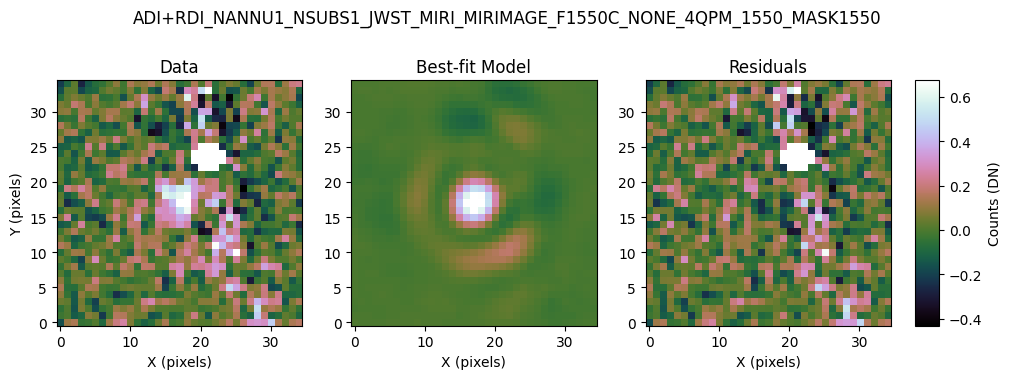

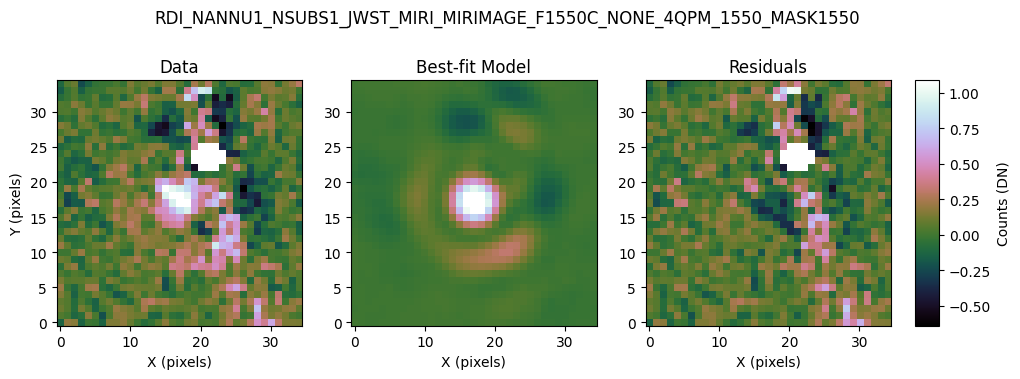

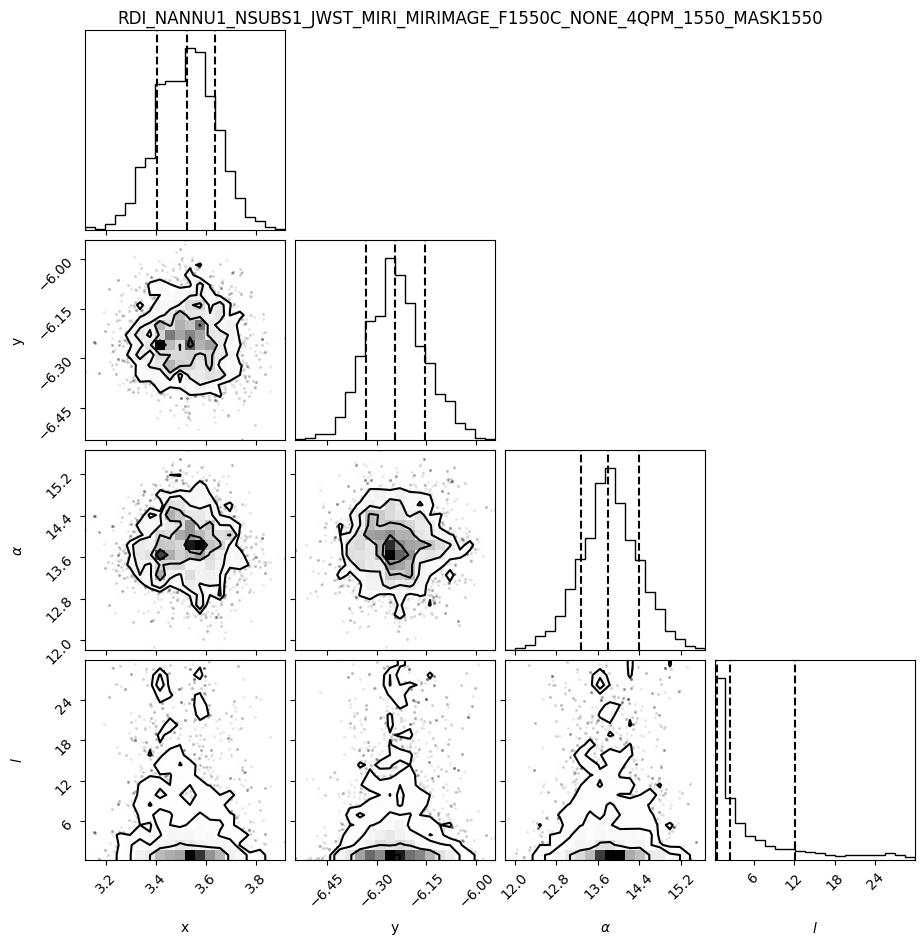

Extract measurements of the companion HD 65426 b
We need to know where the companion is. Using whereistheplanet.org for 2022 Aug 15:
RA Offset = 419.183 +/- 7.853 mas
Dec Offset = -697.621 +/- 6.277 mas
Separation = 813.875 +/- 6.388 mas
PA = 149.014 +/- 0.547 deg
Reference: Bowler et al. 2019
We also need to have a model for the stellar photometry for this step. We reuse the same file as above.
This step also requires an uncertainty for the stellar photometry, parameterized mstar_err
. This can be either a simple scalar estimate, like 0.05, or a dictionary giving uncertainty per JWST filter.
[6]:
dra = 0.41918
ddec = -0.6976
contrast = 1e-4
comp_estimate = (dra, ddec, contrast)
[52]:
mstar_err = {'F250M': 0.054,
'F300M': 0.046,
'F356M': 0.048,
'F410M': 0.051,
'F444W': 0.054,
'F1140C': 0.038,
'F1550C': 0.072}
[53]:
analysistools.extract_companions(companions=comp_estimate,
starfile=star_photometry_txt,
mstar_err = mstar_err)
[spaceKLIP.analysistools:INFO] --> Concatenation JWST_MIRI_MIRIMAGE_F1140C_NONE_4QPM_1140_MASK1140
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Cell In[53], line 1
----> 1 analysistools.extract_companions(companions=comp_estimate,
2 starfile=star_photometry_txt,
3 mstar_err = mstar_err)
File ~/Dropbox (Personal)/Documents/software/git/spaceKLIP/spaceKLIP/analysistools.py:471, in AnalysisTools.extract_companions(self, companions, starfile, mstar_err, spectral_type, klmode, date, use_fm_psf, highpass, fitmethod, fitkernel, subtract, inject, overwrite, subdir)
469 if date == 'auto':
470 date = pyfits.getheader(self.database.obs[key]['FITSFILE'][ww_sci[0]], 0)['DATE-BEG']
--> 471 offsetpsf_func = JWST_PSF(inst,
472 filt,
473 image_mask,
474 fov_pix=65,
475 sp=sed,
476 use_coeff=False,
477 date=date)
479 # Loop through companions.
480 tab = Table(names=('ID',
481 'RA',
482 'RA_ERR',
(...)
526 'float',
527 'object'))
File ~/Dropbox (Personal)/Documents/software/git/spaceKLIP/spaceKLIP/psf.py:112, in JWST_PSF.__init__(self, inst, filt, image_mask, fov_pix, oversample, sp, use_coeff, date, **kwargs)
109 else:
110 pupil_mask = 'MASKFQPM' if 'FQPM' in image_mask else 'MASKLYOT'
--> 112 inst_on = self.inst_ext(filter=filt, image_mask=image_mask, pupil_mask=pupil_mask,
113 fov_pix=fov_pix, oversample=oversample, **kwargs)
115 inst_off = self.inst_ext(filter=filt, image_mask=None, pupil_mask=pupil_mask,
116 fov_pix=fov_pix, oversample=oversample, **kwargs)
118 # Load date-specific OPD files?
File ~/Dropbox (Personal)/Documents/software/git/webbpsf_ext/webbpsf_ext/webbpsf_ext_core.py:978, in MIRI_ext.__init__(self, filter, pupil_mask, image_mask, fov_pix, oversample, **kwargs)
942 """ Initialize MIRI instrument
943
944 Parameters
(...)
974 size will be considered to have 0 residual difference
975 """
977 webbpsf_MIRI.__init__(self)
--> 978 _init_inst(self, filter=filter, pupil_mask=pupil_mask, image_mask=image_mask,
979 fov_pix=fov_pix, oversample=oversample, **kwargs)
981 # No jitter for coronagraphy by default
982 # Otherwise assume 5 mas / axis
983 self.options['jitter'] = None if self.is_coron else 'gaussian'
File ~/Dropbox (Personal)/Documents/software/git/webbpsf_ext/webbpsf_ext/webbpsf_ext_core.py:1657, in _init_inst(self, filter, pupil_mask, image_mask, fov_pix, oversample, **kwargs)
1654 self.filter = filter
1656 # For NIRCam, update detector depending mask and filter
-> 1657 self._update_coron_detector()
1659 # Don't include SI WFE error for MIRI coronagraphy
1660 if self.name=='MIRI':
AttributeError: 'MIRI_ext' object has no attribute '_update_coron_detector'
[8]:
!mv /Users/mperrin/Downloads/HIP65426.vot .
[ ]:
